A Practical Guide to Filter Press: Working Mechanism, Applications, and Performance Advantages

Industrial solid-liquid separation no longer revolves around the filtration area alone. The design around cake dryness targets, cycle stability, automation depth, maintenance intervals, and compliance pressure from environmental and process safety standards. A filter press sits at the center of this equation, not as a standalone machine, but as a controllable process unit that defines material flow, energy usage, and downstream cost.

This guide explores how modern filter presses operate, where different configurations fit best, and which performance indicators truly shape long-term plant economics.

How does a filter press actually separate solids from liquids in industrial conditions?

A filter press works through controlled pressure gradients acting on slurry confined between filtration media. Its value comes from its repeatable cake structure, stable moisture content, and mechanical reliability under continuous loading.

What happens during the feeding stage?

Slurry is injected through central or side channels into closed chambers. Pressure rises gradually as void space fills. Uniform flow distribution prevents early channeling, which would reduce effective filtration area and distort cake density.

In chemical and metallurgical duties, feeding stability matters more than speed. Irregular pressure ramps often cause cloth blinding and plate misalignment later in the cycle.

How is the filter cake formed and compacted?

Particles deposit on the cloth surface and build layered resistance. As permeability drops, filtrate velocity declines while internal stress increases.

Chamber geometry determines how evenly compression propagates across the cake. Well-designed presses maintain parallel plate spacing within narrow tolerances, keeping compressive forces balanced across large filtration areas.

How does air purging and secondary squeezing reduce residual moisture?

After primary filtration, compressed air displaces free liquid from capillaries. Some systems add mechanical squeezing to collapse internal pores further.

This stage directly influences logistics cost. Every percentage point of moisture removed reduces haulage mass, storage volume, and leachate management downstream.

How is cake discharged without damaging the filter cloth?

Plates open sequentially, and gravity releases the cake, assisted by vibration or cloth flexing. Automated pulling reduces operator exposure and protects cloth edges from uneven tension, which remains the main source of premature wear.

Why do different industries require different filter press configurations?

Material chemistry, particle size distribution, and process continuity reshape mechanical design more than catalog specifications.

Why is phosphoric and sulfuric acid processing demanding?

These streams contain abrasive crystals, corrosive liquor, and high solids loading. Presses must tolerate aggressive pH, temperature swings, and long operating cycles without plate deformation or seal failure. Stable plate geometry also preserves wash efficiency, which directly affects acid purity.

Why does non-ferrous smelting require higher mechanical strength?

Hydrometallurgical slurries combine fine particles with high density. Filtration pressure must remain stable across long cycles while resisting fatigue stress from repeated compression. In this scene, frame stiffness and hydraulic consistency dominate performance more than nominal filtration area.

Why is wastewater treatment more sensitive to automation and footprint?

Municipal and industrial wastewater plants face labor constraints and spatial limits. Vertical layouts and automated cycling allow continuous operation with minimal staffing, while reducing building envelope requirements.

What performance indicators really define a high-level filter press?

Headline throughput figures hide the variables that determine total ownership cost.

Why is moisture content more critical than throughput alone?

Dryer cake cuts hauling fees, lowers landfill taxes, and reduces secondary drying energy. Plants often discover that improving dryness by 3-5% yields higher savings than increasing filtration area by 20%.

How does automation reduce operational risk?

Weighing-based feeding, programmable pressure ramps, and fault isolation prevent overloading and cloth damage. Automation also stabilizes cycle time, which improves integration with upstream reactors and thickeners.

Why does filter cloth regeneration affect lifecycle cost?

Air-backflushing and online washing delay pore blockage. Longer cloth life reduces shutdown frequency and keeps filtration curves stable across months rather than weeks.

How does sealing design influence plant safety?

Leakage spreads corrosive liquor, damages floors, and increases slip hazards. Reliable gasket systems and consistent plate parallelism remain basic but decisive design elements.

How do horizontal and vertical filter press architectures differ in real projects?

Scale and layout constraints drive this choice more than process chemistry.

Why does horizontal design favor ultra-large filtration areas?

Horizontal presses distribute mechanical load across long beams and allow filtration surfaces to expand without raising building height, which suits chemical complexes and mining sites with wide plant layouts.

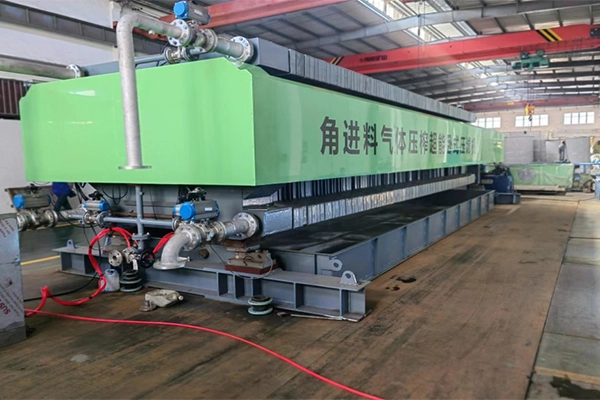

A representative example is the Super Pressure Horizontal Plate Filter Press, whose architecture supports large chamber volumes, stable compression, and low deformation across extended cycles, making it suitable for bulk chemical and mineral duties.

Why is vertical structure preferred where space is limited?

Vertical presses stack plates upward. Gravity assists cake discharge, and the footprint shrinks dramatically.

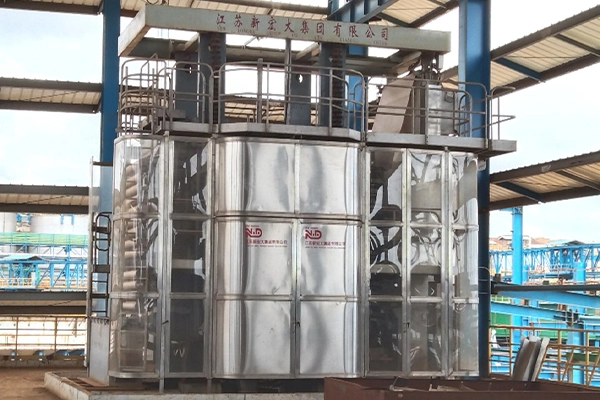

A common configuration is the Vertical Automatic Pressure Filter, whose layout integrates automatic plate shifting and enclosed discharge. It is suitable for urban plants, specialty chemicals, and facilities seeking higher automation density.

How do maintenance strategies differ between the two layouts?

Horizontal presses require longer structural inspections but offer easier cloth replacement access. Vertical presses shorten walking distances for operators but concentrate mechanical components in a smaller envelope, raising the importance of scheduled inspection.

What design details separate reliable systems from short-lived equipment?

Mechanical consistency beats peak specification.

Why does plate material selection affect long-term stability?

Composite plates resist creep better under cyclic pressure. Inferior materials deform gradually, which increases leakage and reduces cake uniformity long before visible failure.

How do feeding channels influence pressure uniformity?

Symmetrical channel layouts prevent localized stress. Uneven filling often triggers early cloth wear and asymmetric cake cracking.

Why does PLC logic architecture matter in multi-shift plants?

Control logic governs pressure ramps, valve timing, and fault recovery. Poor logic design forces operators into manual overrides, increasing both labor cost and error probability.

Who can deliver both engineering depth and large-scale manufacturing consistency?

In large chemical and metallurgical projects, separation equipment suppliers increasingly function as system engineers rather than component vendors.

NHD, founded in 1992, has developed as an integrated group covering filtration, automatic filter presses, agitation, thickening, sulfuric-acid equipment, pressure vessels, and EPC delivery. Operating from a 270,000 square meters manufacturing base with over 800 staff and more than 260 engineering personnel, we supply equipment across phosphoric chemicals, alumina refining, non-ferrous smelting, sulfuric acid production, and environmental treatment. With hundreds of patented technologies and long-term cooperation with international engineering firms, our group has delivered equipment to more than 50 countries while maintaining leading domestic market positions in multiple separation equipment categories.

How should you evaluate filter press ROI before procurement?

Capital price tells little about real operating cost.

How do you estimate the cost per ton of dry solids?

Include energy per cycle, cloth replacement, hydraulic oil consumption, maintenance labor, and downtime probability. Dry tonnage output offers a more reliable metric than wet slurry throughput.

Why should energy per cycle be included?

Air compression, hydraulic pumps, and washing systems accumulate into substantial annual loads, especially in continuous plants.

How do maintenance intervals affect total ownership cost?

Unplanned shutdowns disrupt upstream reactors and downstream dryers. Designs that allow fast cloth changes and modular seal replacement often outperform cheaper equipment within two years of operation.

Conclusion

A filter press is not merely a mechanical separator. It is a stability device that governs moisture control, production rhythm, and long-term operating cost. Horizontal and vertical architectures serve different spatial and scaling strategies, while automation depth and structural accuracy dictate reliability.

If you evaluate presses by cake dryness, cycle consistency, and maintainability rather than surface area alone, procurement decisions become far more predictable and defensible.

FAQs

Q: How low can filter cake moisture realistically be reduced in high-pressure systems?
A: With staged compression and air displacement, modern presses commonly achieve moisture reductions of 30-50% compared with conventional chamber designs, depending on particle size and slurry chemistry.

Q: Is horizontal design always better for capacity expansion?
A: No. Horizontal presses scale filtration area efficiently, but vertical presses often outperform when plant footprint, automation density, or enclosed discharge is critical.

Q: How often should filter cloth be replaced in continuous chemical service?
A: With air regeneration and proper washing design, service life commonly exceeds one year, though abrasive particles and temperature remain decisive factors.
