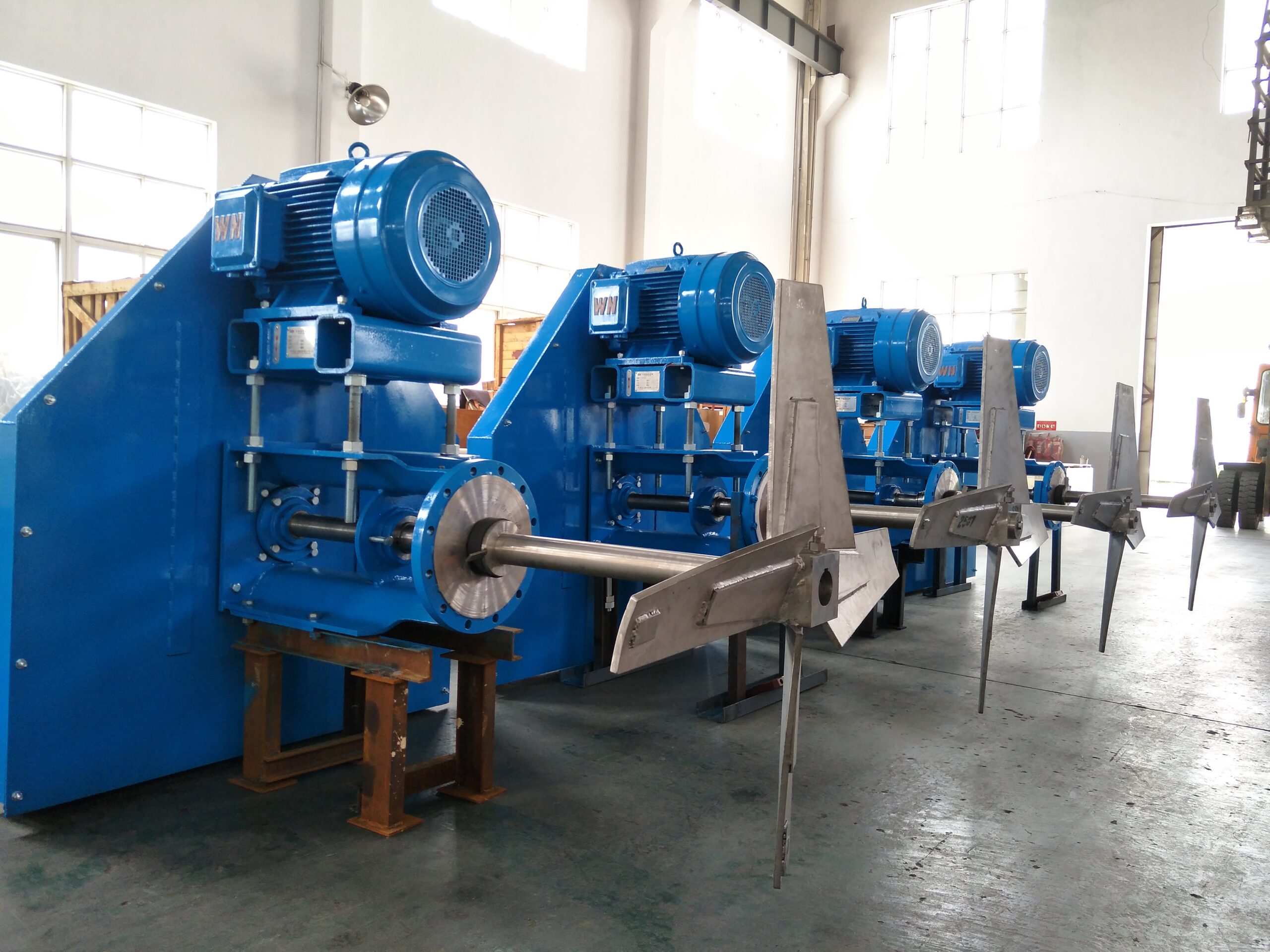

Side-Entry Agitator

Categories: Agitator&thickener series

NHD possesses world-class CFD fluid design software FLUENT and operates China’s leading pilot-scale mixing simulation test platform along with a provincial-level laboratory.

Our extensive expertise in fluid mixing, supported by optimal application design software, proprietary mixing theories, and robust laboratory analysis capabilities, establishes us as the preferred supplier for fluid mixing equipment.

Chat Now

Product Description

Side-entry agitator can be used in large scale liquid storage tank and oil tank. Its power consumption is only 1/3 to 2/3 as center agitator’s for liquid tank above 1000m³ at the same effect of blending. The side-entry agitator has several advantages, such as low manufacturing and foundation cost.

This agitator prevent liquid in tank from flowing out in using sealing device.

Shaft packing seal and mechanical seal:

The innovative packing seal design resolves traditional packing seal issues, significantly improving online maintenance capability, reducing leakage, and minimizing shaft sleeve wear.
The structurally enhanced mechanical seal addresses agitator blade vibration and shaft pulsation problems through its high-performance stationary seal ring, resulting in greater efficiency, lower operating costs, and extended service life.

Competitive Advantage:

NHD possess a complete range of agitation test equipment capable of meeting experimental requirements for different manufacturers and processes, including: lab-scale tests, pilot tests, and scale-up experiments.

Advanced R&D Technologies:

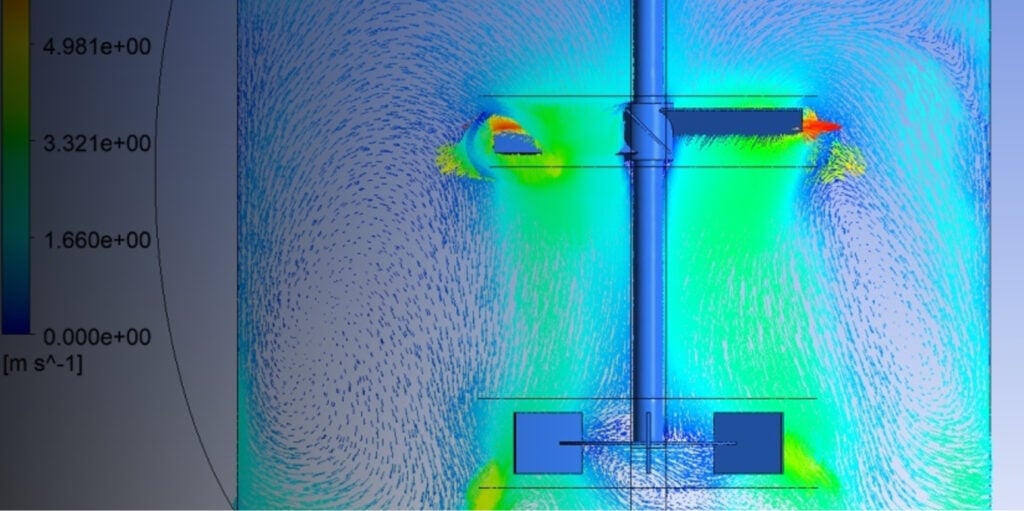

CFD fluid analysis technology

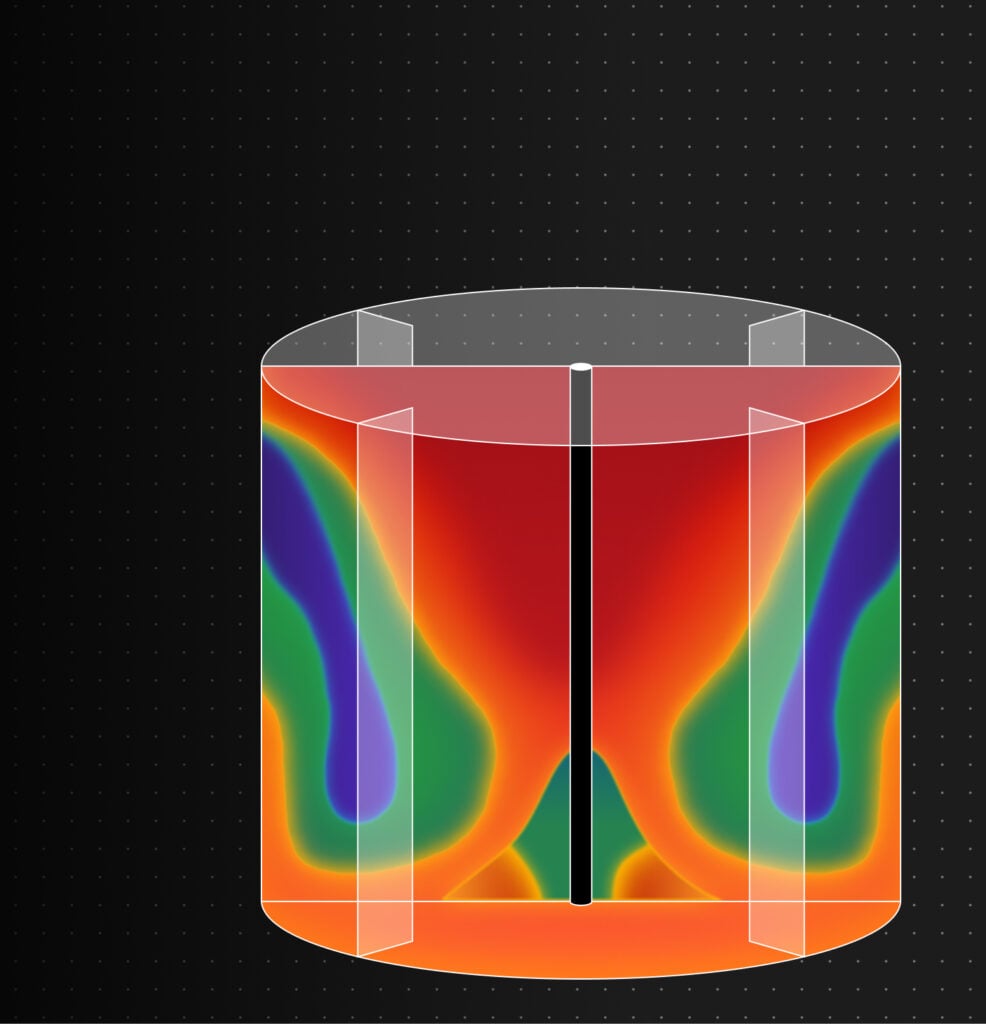

CFM computerized fluid mixing simulation technology

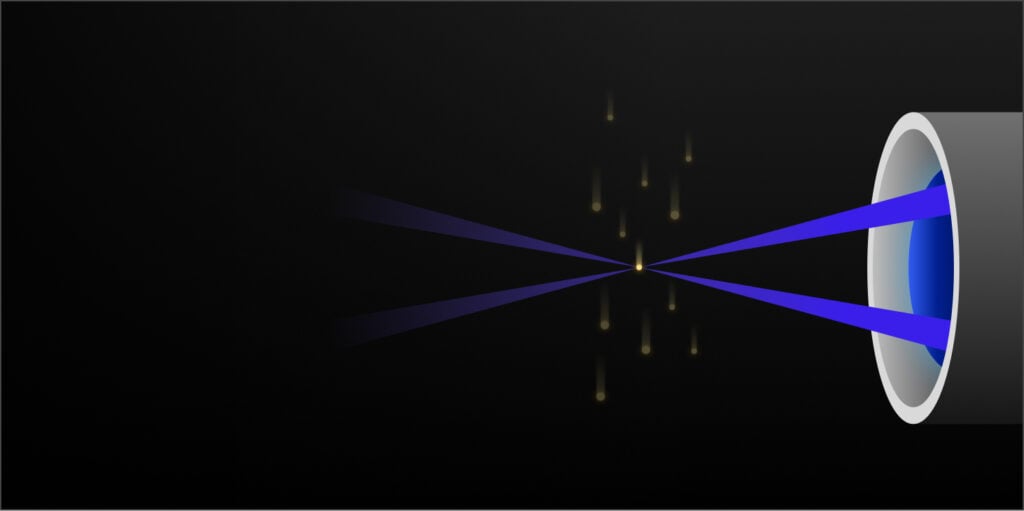

LDA laser Doppler velocimetry technology

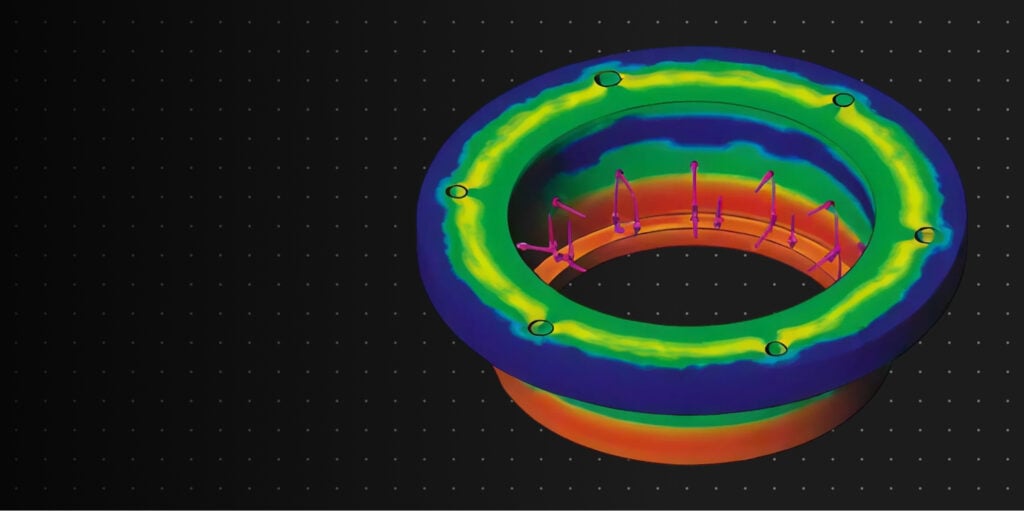

FEA finite element analysis
CAD 3D design

Product Specifications

NHD can conduct customized agitation experiments based on customers’ specific material requirements, providing solid theoretical foundations for agitator design and selection. Leveraging over two decades of design and manufacturing expertise, we deliver optimal technical solutions tailored to each client’s needs.

Selection Input Requirements:

Tank Specifications: Diameter, height, top/bottom design, baffles
Medium Properties: Characteristics, concentration, throughput, density, viscosity, operating liquid level, solid particle size distribution
Operating Conditions: Temperature, pressure
Feeding/Discharge Method: Sealing requirements (if any)
Operation Mode: Continuous or batch
Mixing Purpose: Blending, reaction, dissolution, suspension, dispersion, crystallization, etc.
Other Parameters Provided by the Customer
