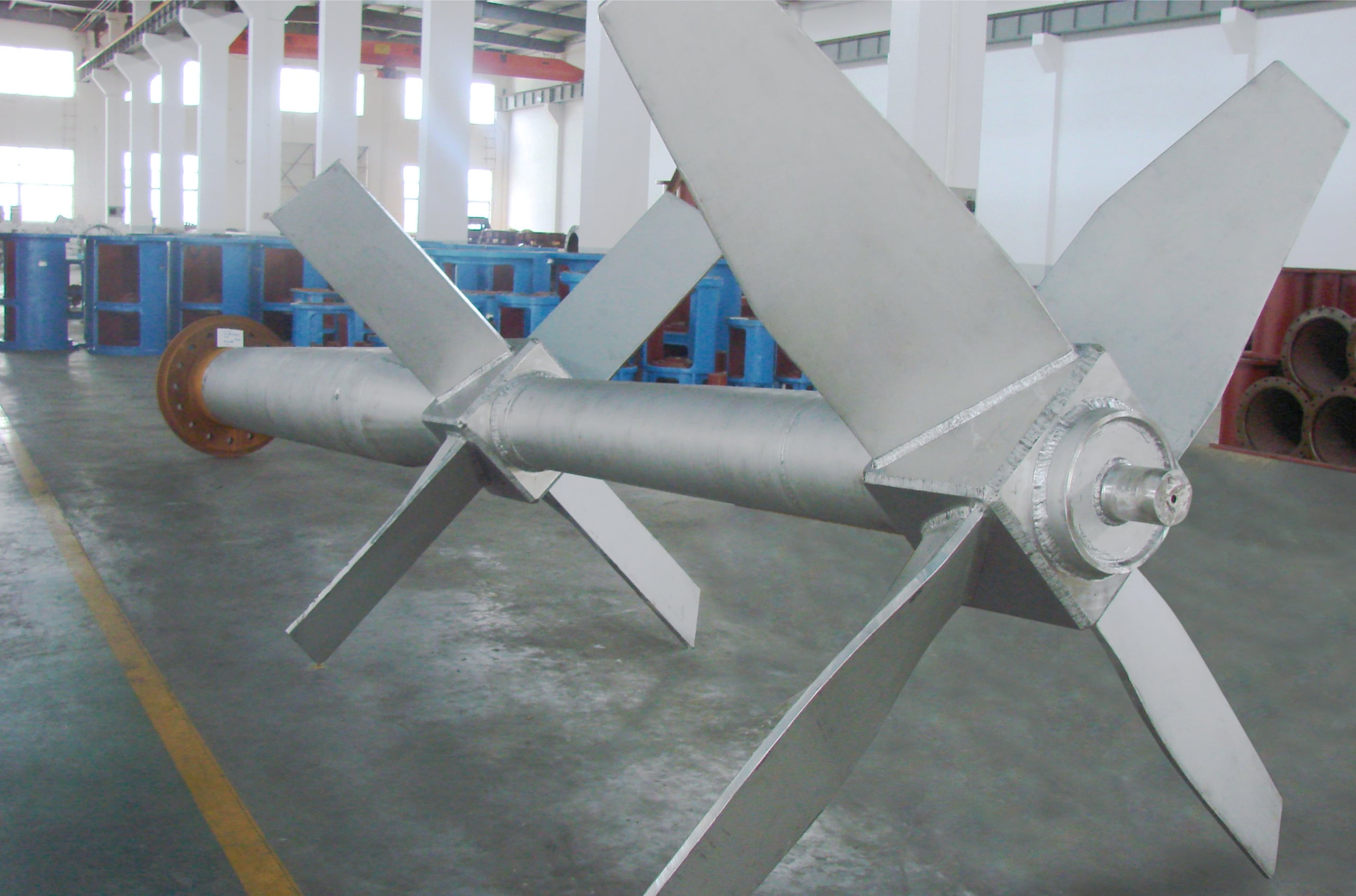

Variable Cross-Section & Obliquity Agitator

Categories: Agitator&thickener series

NHD possesses world-class CFD fluid design software FLUENT and operates China’s leading pilot-scale mixing simulation test platform along with a provincial-level laboratory.

Our extensive expertise in fluid mixing, supported by optimal application design software, proprietary mixing theories, and robust laboratory analysis capabilities, establishes us as the preferred supplier for fluid mixing equipment.

Chat Now

Product Description

The agitator delivers high recirculating axial flow with low shear rate while maintaining minimal power consumption. Compared to conventional 45° PBT agitators, it achieves equivalent mixing performance while reducing power consumption by 40-50%.

For PA displacement reactions and non-ferrous metal industries, leaching tanks require high pumping capacity with controlled shear rates to prevent excessive crystal breakage – a critical factor for subsequent filtration and sedimentation processes. Specifically designed for these applications, NHD’s agitator has been widely adopted by PA and non-ferrous metal producers, demonstrating exceptional operational efficiency.

Competitive Advantage:

NHD possess a complete range of agitation test equipment capable of meeting experimental requirements for different manufacturers and processes, including: lab-scale tests, pilot tests, and scale-up experiments.

Advanced R&D Technologies:

CFD fluid analysis technology
CFM computerized fluid mixing simulation technology
LDA laser Doppler velocimetry technology
FEA finite element analysis
CAD 3D design

Product Specifications

NHD can conduct customized agitation experiments based on customers’ specific material requirements, providing solid theoretical foundations for agitator design and selection. Leveraging over two decades of design and manufacturing expertise, we deliver optimal technical solutions tailored to each client’s needs.

Selection Input Requirements:

Tank Specifications: Diameter, height, top/bottom design, baffles
Medium Properties: Characteristics, concentration, throughput, density, viscosity, operating liquid level, solid particle size distribution
Operating Conditions: Temperature, pressure
Feeding/Discharge Method: Sealing requirements (if any)
Operation Mode: Continuous or batch
Mixing Purpose: Blending, reaction, dissolution, suspension, dispersion, crystallization, etc.
Other Parameters Provided by the Customer
