Choosing the right separation equipment is one of the most consequential decisions a process plant makes. Get it right and you cut energy bills, reduce downtime, and hit your purity targets without babysitting the line. Get it wrong and you spend years fighting blinded cloths, wet cake, and unplanned shutdowns. This guide walks through how we think about the problem at NHD, from reading the slurry to commissioning the machine.
It is written for plant engineers, project managers, and procurement teams who need a working mental model before they sit down with a supplier. You do not need a background in filtration theory to follow along, but by the end you should be able to ask sharper questions and spot a mismatched recommendation when you see one.
Understanding Your Slurry
Every separation project starts with the feed, not the machine. Two slurries that look identical in a bucket can behave completely differently once they hit a filter. Before anyone talks about equipment, you need a clear picture of what you are actually trying to separate.
Particle Size Distribution
Particle size drives almost everything downstream. Coarse, free-draining solids settle quickly and release water with little persuasion. Fine particles, especially anything below ten microns, form compressible cakes that hold water stubbornly and blind filter media fast. A single distribution curve tells you more about likely performance than any datasheet.
Watch out for bimodal distributions, where fine particles wedge into the gaps between coarse ones. These slurries dewater far worse than either fraction would alone, and they routinely surprise teams who only looked at an average size.
Solids Concentration and Density
The ratio of solids to liquid sets the duty for the whole circuit. A dilute stream at two percent solids may need a thickener up front before any filter can earn its keep. A thick paste at forty percent might skip thickening entirely and go straight to a filter press. Density difference between the solid and the liquid decides how readily gravity does part of the work for you.
Measuring Concentration on Site
You can get a usable solids figure with a drying oven and a balance: weigh a sample wet, dry it, weigh it again. For continuous monitoring, inline density meters or ultrasonic probes give you a live reading. Whatever method you pick, take samples across a full production cycle rather than once on a calm afternoon. Slurries drift.
Chemistry and Temperature
pH, dissolved salts, and temperature all shape both the equipment and the materials it is built from. An acidic stream rules out ordinary carbon steel and pushes you toward rubber linings or special alloys. Hot feeds expand seals and soften some plastics. Knowing the chemistry early prevents the expensive discovery that your shiny new machine corrodes in a month.
Matching Equipment to the Job
Once you understand the feed, the equipment choice narrows quickly. There is no universal best machine, only the best fit for a given duty, throughput, and dryness target. Below are the workhorses we install most often and where each one shines.

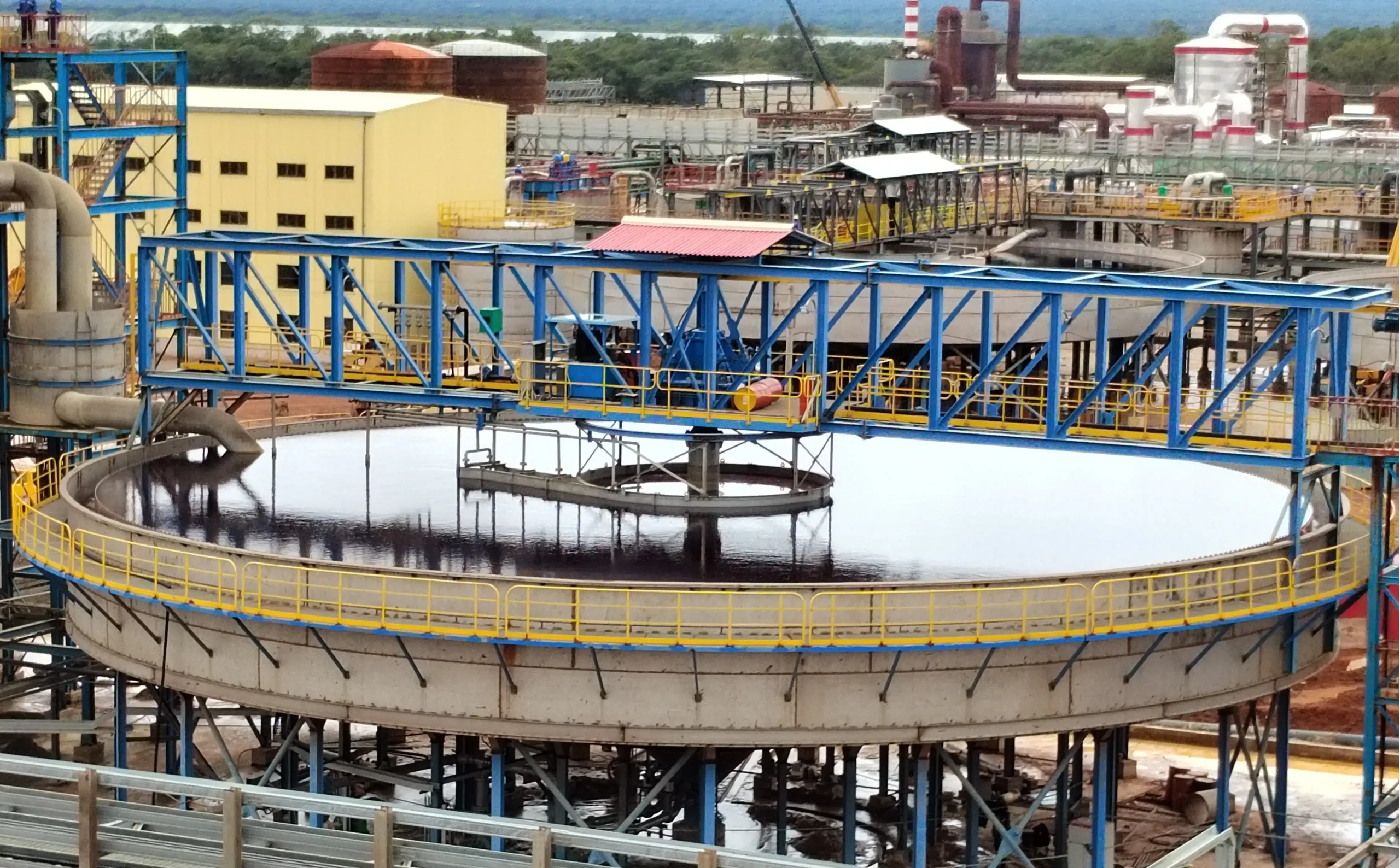

Thickeners and Clarifiers
Thickeners use gravity to concentrate dilute slurries before filtration, recovering clear overflow water for reuse. They are the quiet enabler of an efficient plant: by removing the bulk of the liquid cheaply, they shrink every machine that follows. A well-sized thickener pays for itself in reduced filter area alone.
Vacuum Filters
Rubber belt and disc vacuum filters handle continuous, high-volume duties where the cake drains freely. They run unattended for long stretches and suit free-filtering solids like gypsum or coarse minerals. Where the slurry drains slowly, vacuum alone runs out of driving force and you need pressure instead.
Horizontal Belt Versus Rotary Drum
Horizontal belt filters give you a flat, open surface that is easy to wash and excellent for multi-stage countercurrent washing. Rotary drums pack more area into a smaller footprint and excel at simple dewatering. If your process needs thorough cake washing, the belt usually wins; if floor space is tight and washing is light, the drum is hard to beat.
Filter Presses
For the driest possible cake and the hardest-to-filter solids, a filter press is the answer. By squeezing the cake under high pressure, it drives moisture down to levels no vacuum filter can reach. The trade-off is batch operation and more hands-on cloth management, which is why presses suit lower-volume, high-value, or environmentally sensitive duties.
Filter Media and Consumables
The machine gets the attention, but the filter cloth does the actual separating. The right media balances retention against flow, and the wrong one will undo a perfectly good machine. Treat media selection as a first-class decision, not an afterthought left to whatever the supplier ships by default.
Weave and Material
Monofilament weaves shed cake cleanly and resist blinding, which makes them a safe default for sticky solids. Multifilament and staple weaves capture finer particles but hold onto cake more tenaciously. Polypropylene covers most chemistries cheaply; polyester, nylon, and PTFE step in as temperature and aggressiveness climb.
Wear and Replacement Cycles
Cloth is a consumable, so plan for its life from day one. Abrasive slurries chew through media in weeks; gentle ones leave it serviceable for a year or more. Track cycle counts and pressure drop rather than swapping on a fixed calendar, and keep spares on the shelf so a blinded cloth never becomes a line stoppage.
Sizing and Throughput
Sizing turns lab numbers into a real machine. Undersize it and you throttle the whole plant; oversize it and you have paid for capacity that sits idle. The goal is honest headroom, enough to absorb normal swings without gold-plating the capital cost.
Bench and Pilot Testing
A leaf test or pilot run on your actual slurry is worth more than any correlation from a handbook. It gives you a measured filtration rate, cake moisture, and wash behaviour under conditions you can trust. Skipping this step to save a few weeks is the most common reason a project misses its targets after start-up.
Designing in Margin
Real feeds vary with ore grade, season, and upstream upsets. A sensible design carries ten to twenty percent margin on filter area and accounts for the cloth losing performance as it ages. Build in the slack on paper so you are not forced to find it under pressure later.
Installation and Commissioning
A well-chosen machine still fails if it is installed badly or commissioned in a hurry. The last stretch of a project, from delivery to steady production, deserves the same care as the selection that preceded it.
Foundations and Utilities
Confirm that foundations, drainage, and utility connections match the equipment before it arrives on site. Vacuum filters need adequate vacuum capacity and a reliable filtrate path; presses need the right hydraulic supply and clearance for cake discharge. Sorting these out early avoids the scramble that happens when a machine lands and nothing fits.
Operator Training and Handover
The people who run the machine day to day decide whether it meets its promise. Invest in proper training on cloth changes, cleaning cycles, and reading the signs of trouble. A confident operator catches a blinding cloth before it stops the line; an untrained one calls you at midnight.
Conclusion
Good separation comes from understanding the slurry first and choosing equipment second. Characterise the feed honestly, test on real material, size with sensible margin, and treat the filter media and commissioning as decisions in their own right. Do that and the machine will quietly do its job for years.
If you are weighing a separation project and want a second opinion on the approach, our engineers are happy to look at your numbers and tell you straight what will and will not work.
