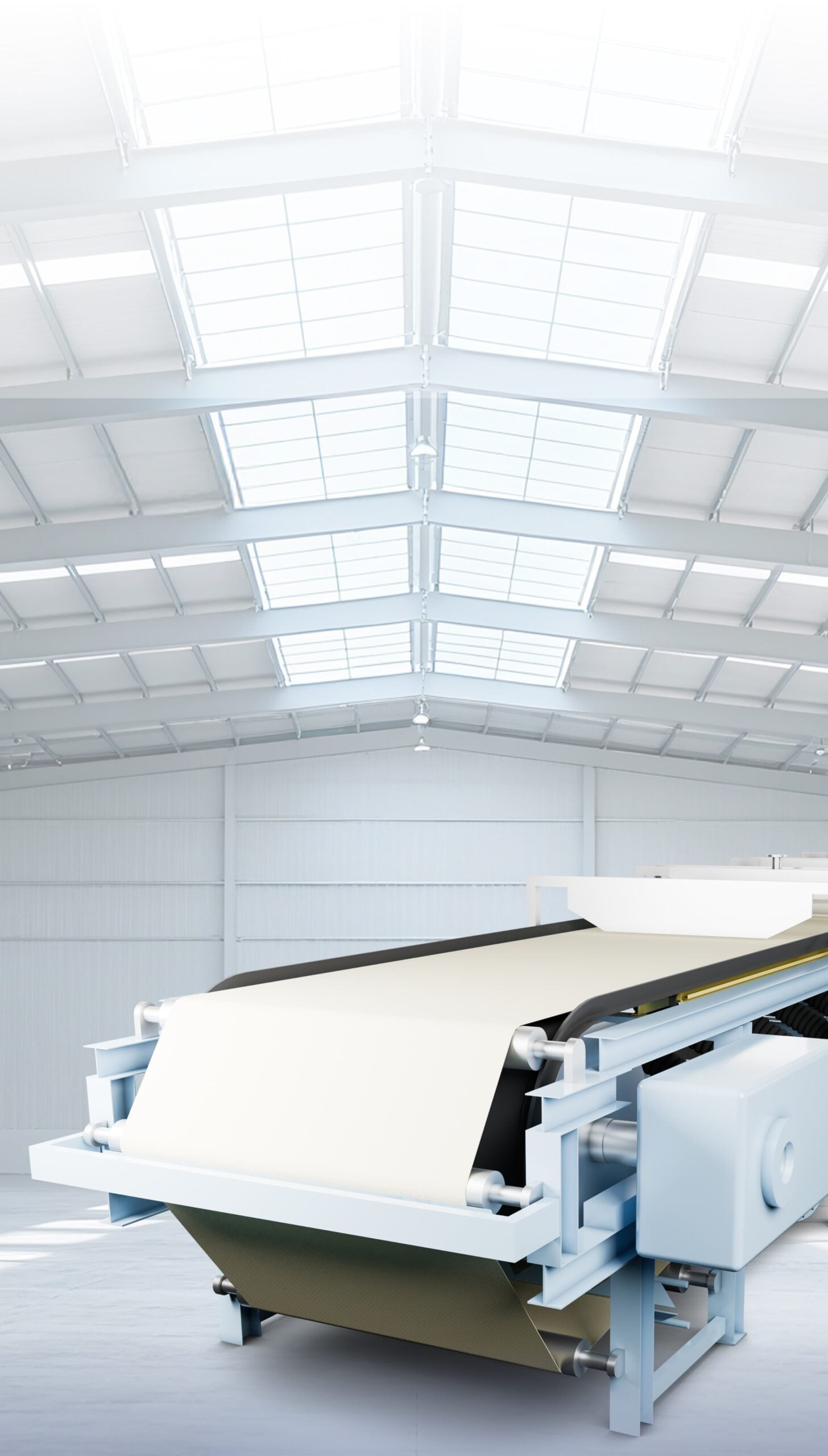

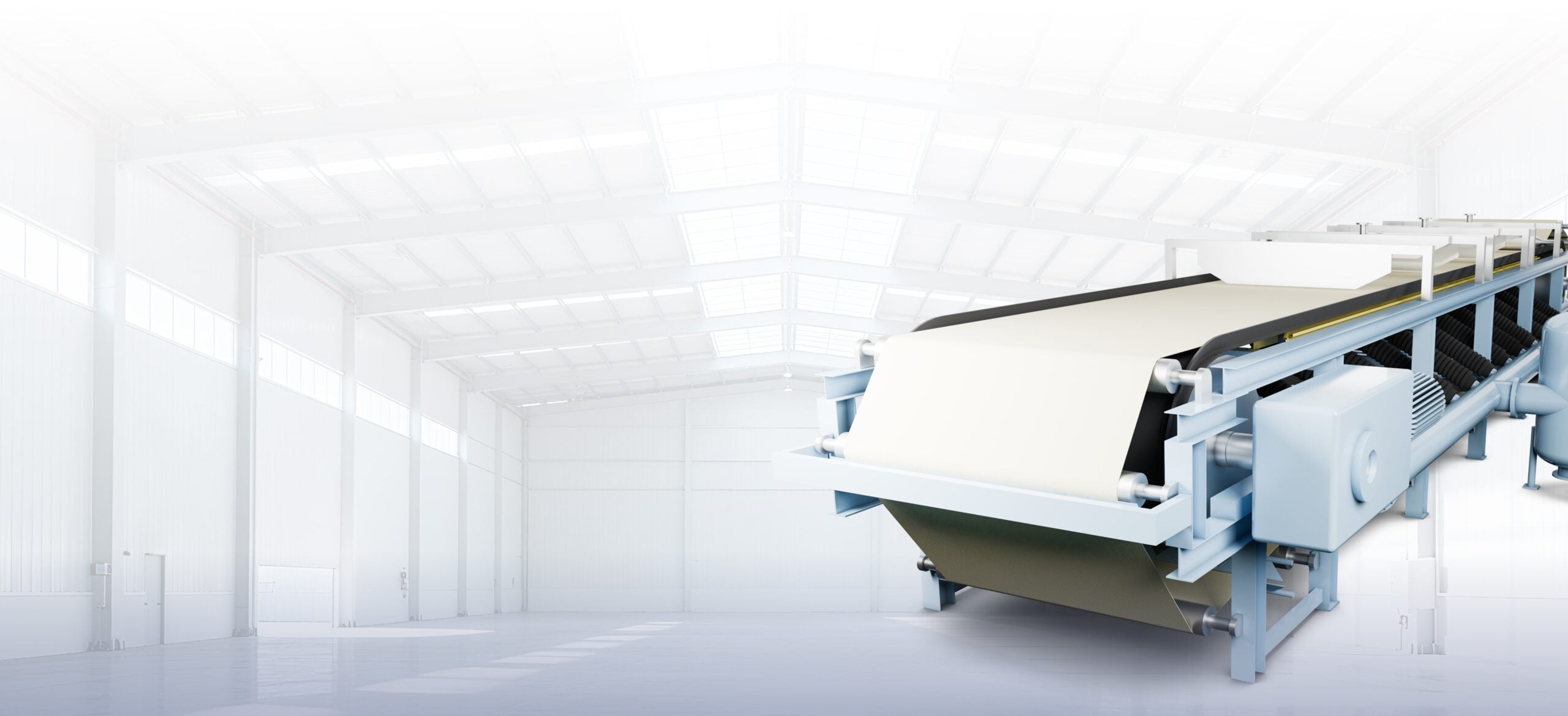

The horizontal rubber belt vacuum filter is a continuous filtration system that utilizes a circular-moving toroidal filter cloth as its medium. By employing vacuum-generated negative pressure combined with gravitational force, it achieves rapid solid-liquid separation. This equipment has found widespread application across multiple industries, including phosphoric acid production, metallurgy, mining, chemical processing, environmental protection, and power plant desulfurization etc.

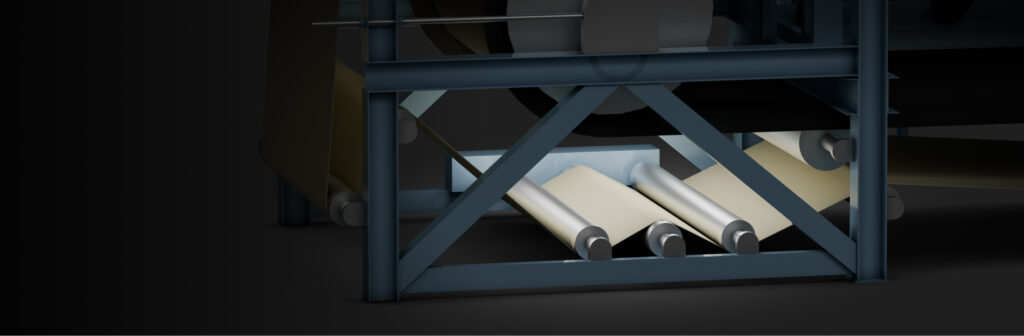

Rapid Tension Control
Large-stroke device ensures fast response with minimal deviation.

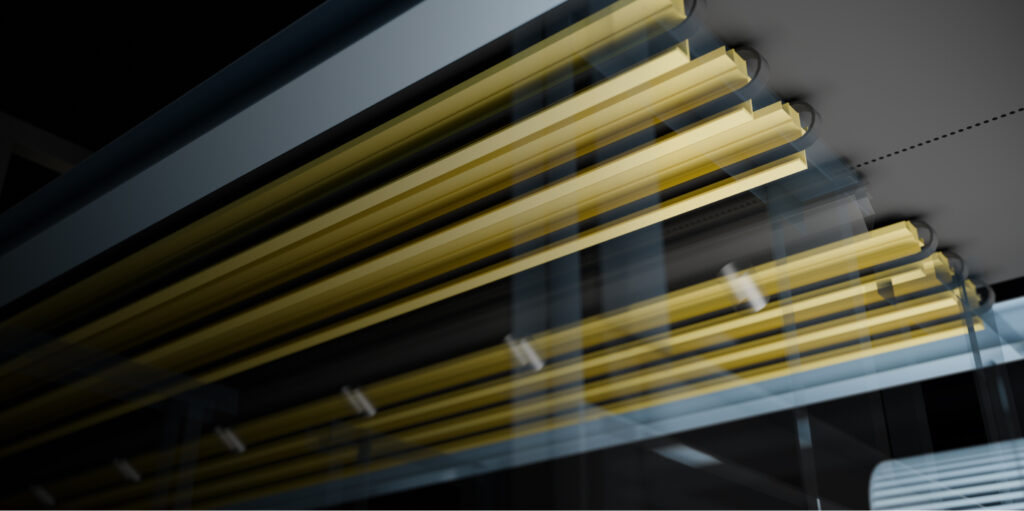

Stable Belt Support
Reinforced rubber ensures crack resistance & high pressure handling.

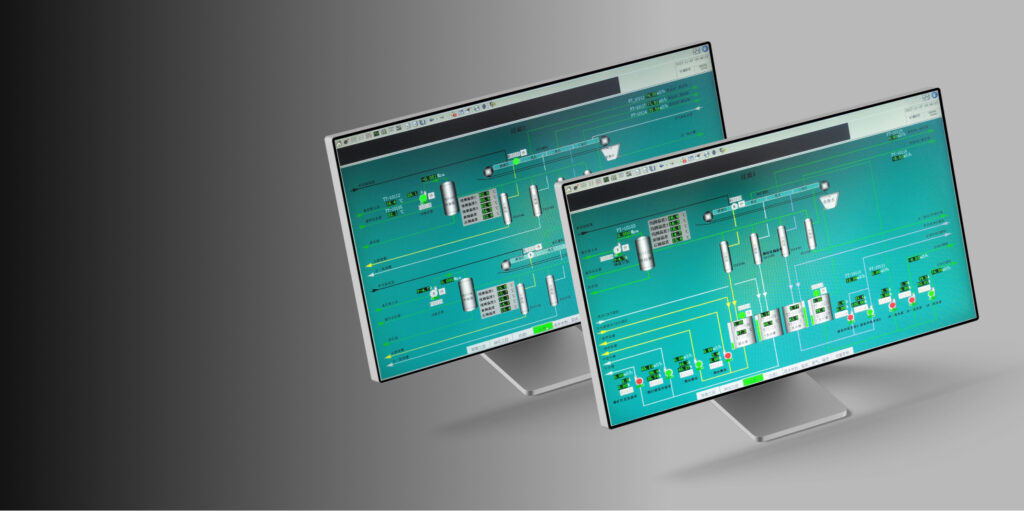

Precision Process Control
Easy adjustment of cake thickness, wash water, vacuum & cycle time.

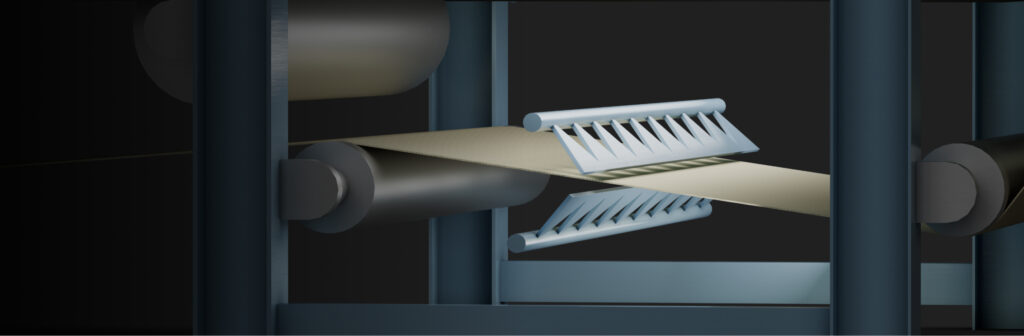

High-Performance Cloth Cleaning
Specialized scrubber restores air permeability effectively.

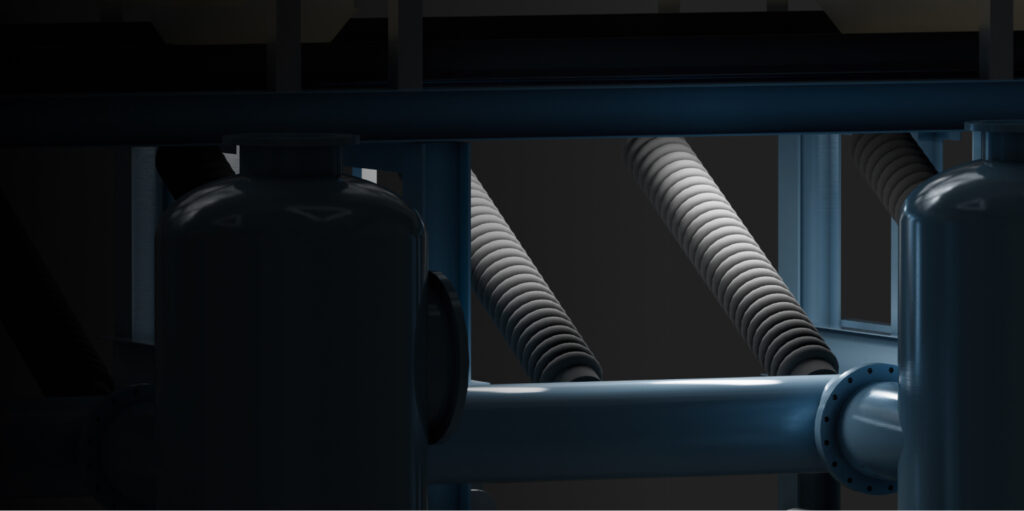

Efficient Vacuum System
Scale-free design offers low resistance & easy maintenance.

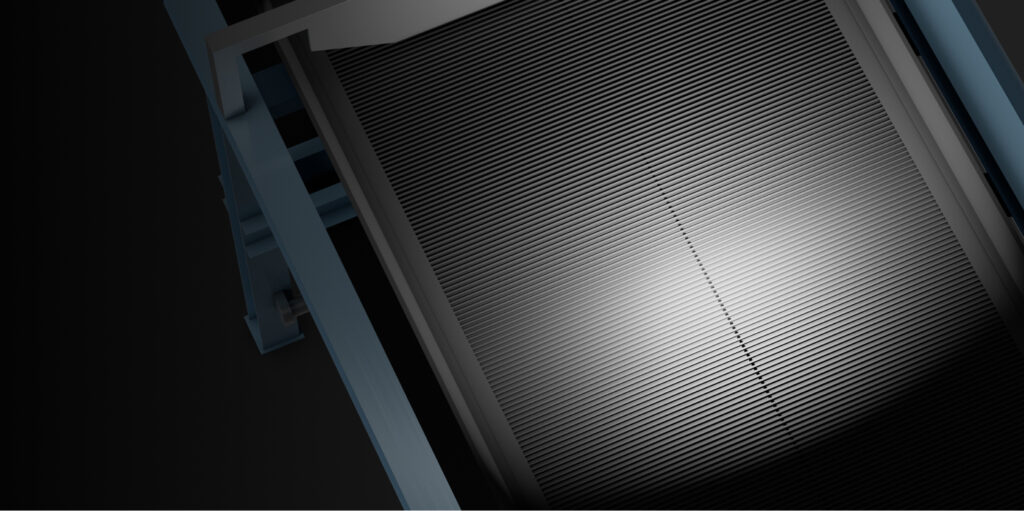

Optimized Belt Design
Precision-engineered grooves/holes enhance drainage & filtration.

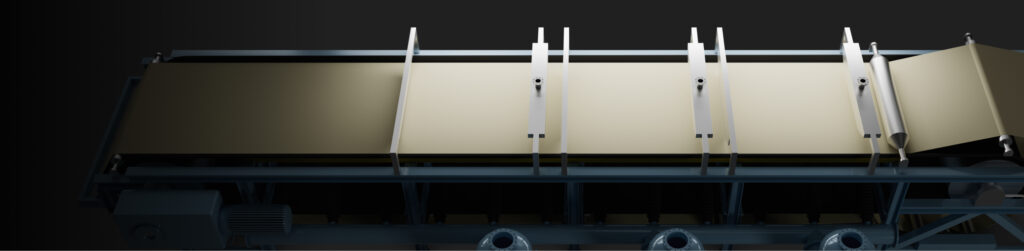

Slurry Distribution and Multi-stage Washing
Uniform cake formation, multi-stage counter-current washing for superior washing efficiency, significantly reducing operation and maintenance workload.
Model and Specification
of Horizontal Rubber Belt Vacuum Filter
| Belt width (mm) | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 2800 | 3200 | 3500 | 4000 | 4350 | 4500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filter Length (mm) | Filter Area ( m² ) | ||||||||||||
| 2000 | 0.8 | ||||||||||||
| 4000 | 1.6 | 2.5 | |||||||||||
| 6000 | 3.8 | 6 | |||||||||||
| 8000 | 8 | 10 | |||||||||||
| 10000 | 12.5 | ||||||||||||
| 12000 | 15 | ||||||||||||
| 14000 | 22.4 | ||||||||||||
| 12500 | 20 | 25 | |||||||||||
| 15000 | 30 | ||||||||||||
| 17500 | 35 | 44 | |||||||||||
| 20000 | 50 | 56 | 64 | ||||||||||
| 22500 | 63 | 72 | |||||||||||
| 25000 | 80 | ||||||||||||
| 21000 | 74 | 84 | |||||||||||
| 24000 | 84 | 96 | 106 | ||||||||||
| 27000 | 95 | 108 | 120 | ||||||||||
| 30000 | 120 | 132 | |||||||||||
| 33000 | 145 | ||||||||||||
| 36000 | 162 | ||||||||||||
Applications of Horizontal Rubber Belt Vacuum Filter
Phosphogypsum Repulping and Washing
Hubei, China

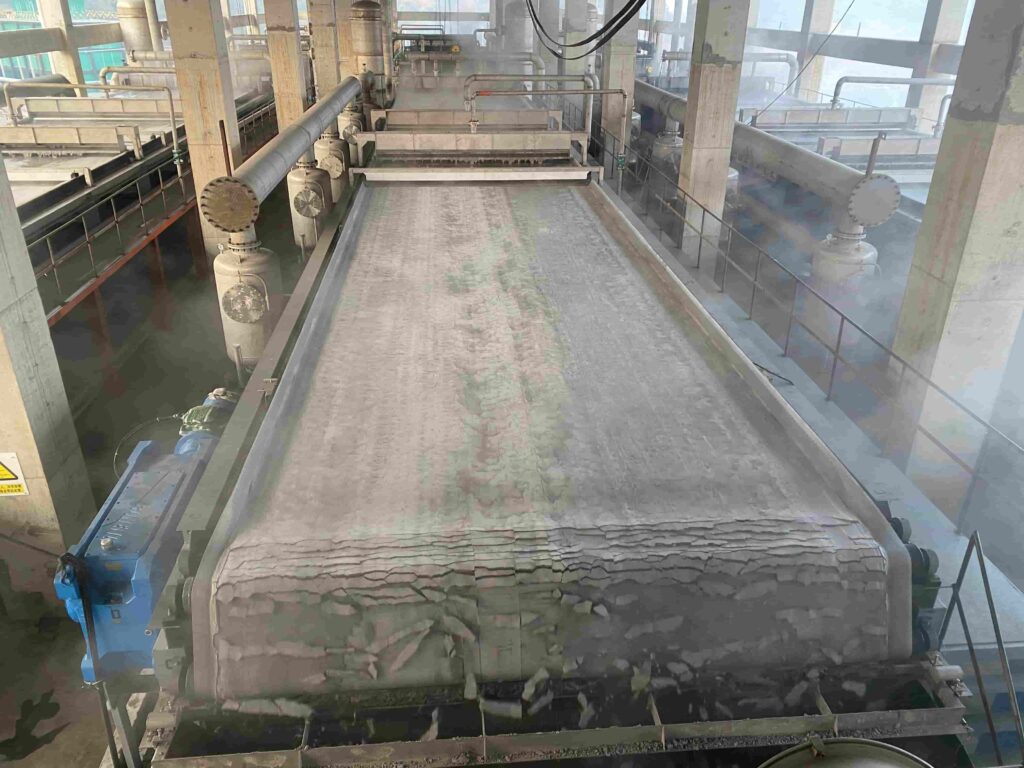

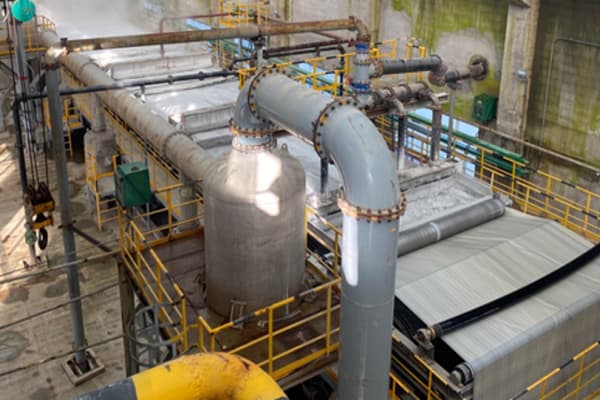

8 Sets of 120m² Horizontal Rubber Belt Vacuum Filters
Phosphogypsum Repulping and Washing
Inner Mongolia, China

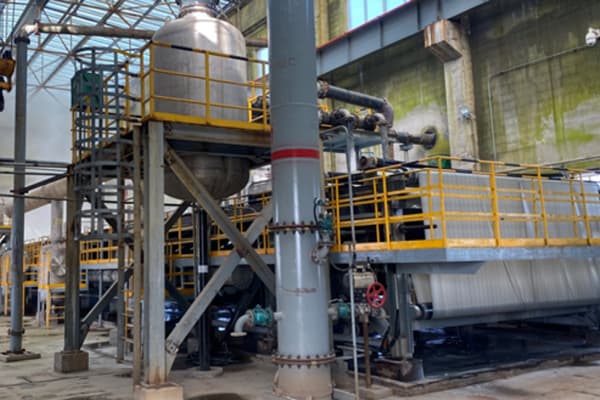

120m² Horizontal Rubber Belt Vacuum Filter

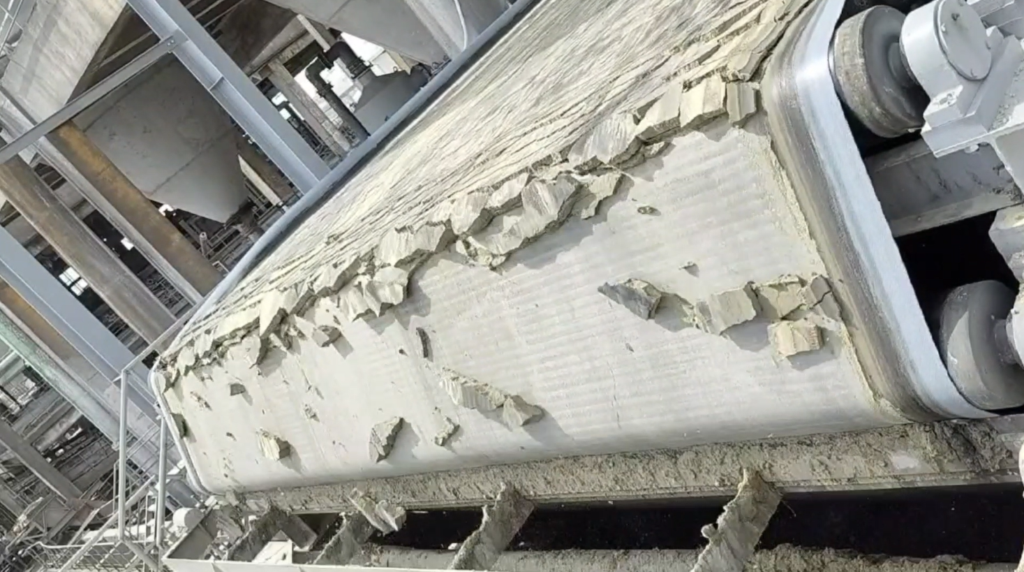

DAP
Vietnam

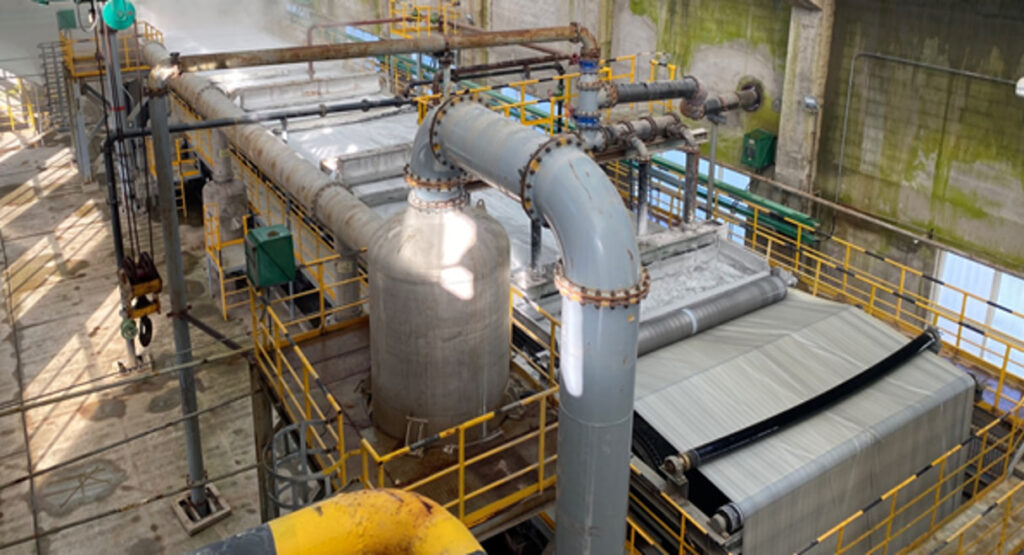

84m² Horizontal Rubber Belt Vacuum Filter
Phosphate Ore Beneficiation
Senegal

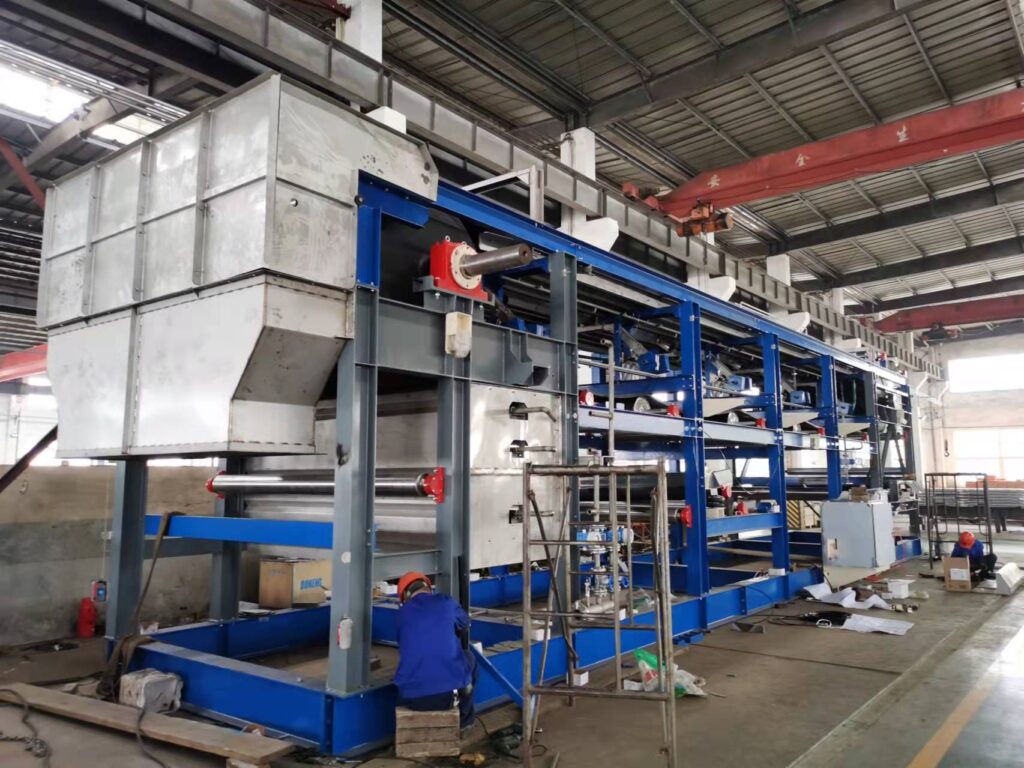

20m² Horizontal Rubber Belt Vacuum Filter
Our latest projects
Republic of the Congo
Copper Smelting Project for SOREMI in the Republic of the Congo
NHD supplied thickening equipment for the SOREMI copper project in the Republic of the Congo. The equipment supports solid-liquid separation in copper processing operations. Project Details Scope of Supply NHD manufactured and supplied thickening equipment for the project’s copper processing operations, with equipment specifications matched to the process requirements and site operating conditions. For more […]
Myanmar
NORINCO International Project in Myanmar
NHD supplied agitation equipment for a nonferrous metals project associated with NORINCO International in Myanmar, supporting industrial mixing operations. Project details Scope of supply NHD scoped, manufactured and commissioned the process equipment for this project, matching materials and capacity to the site’s operating conditions and integrating with the client’s upstream and downstream stages. For more […]
India
Alumina Project in India
NHD supplied thickeners for an alumina processing project in India, supporting solid-liquid separation operations in alumina production. Project details Scope of supply NHD scoped, manufactured and commissioned the process equipment for this project, matching materials and capacity to the site’s operating conditions and integrating with the client’s upstream and downstream stages. For more project detail, […]
Uzbekistan
4 t/a Gold Project in Uzbekistan
NHD supplied agitation equipment for a gold mining project in Uzbekistan with an annual gold production capacity of 4 tonnes, supporting mixing operations in gold processing. Project details Scope of supply NHD scoped, manufactured and commissioned the process equipment for this project, matching materials and capacity to the site’s operating conditions and integrating with the […]
