Lower Energy Consumption.
Lower Operating Costs.
The EH96 series gas heater is developed based on the production experience of resistance wire ovens. It incorporates an analysis of domestic gas heaters used in converting processes and integrates advanced foreign technologies. This equipment has been granted a national patent (Patent No. ZL96.2.31961.9). It features a rational design, operational reliability, durability, gas-tight integrity, and easy maintenance.
Direct Heat Transfer Rate
New-style resistance wire winding exposes over 95% of heating elements to the flow, achieving high heat transfer coefficient.
>95%
Extended Service Life
New-style resistance wire winding exposes over 95% of heating elements to the flow, achieving high heat transfer coefficient. The low surface load design prevents wire breakage.
Quick Maintenance

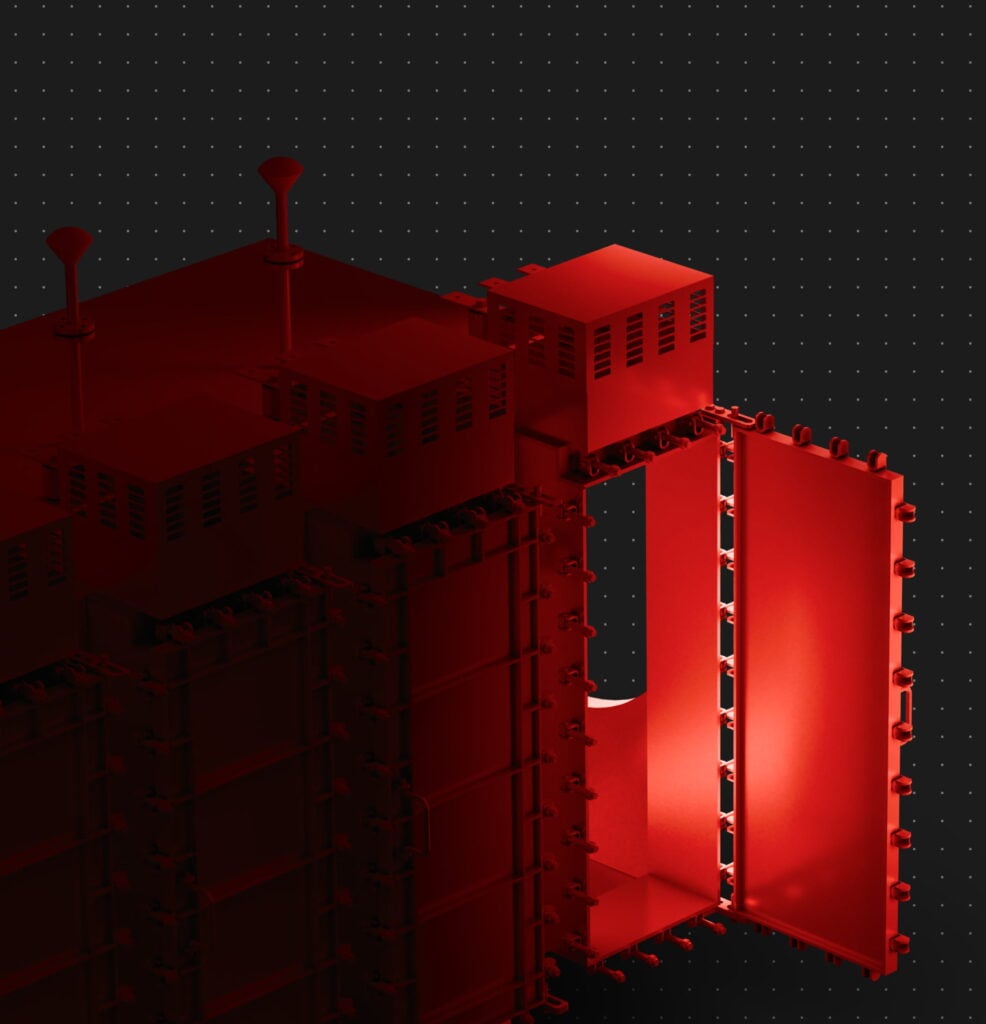

Features easy heating element replacement with fast-open door structure.
Model and Specification
of Side-Door Gas Heater
- Voltage: 380 V
- Connecting Type: △ , Y
- Rated Power: 90-4800 kW
- Inlet Temperature: Ambient temperature to 400 °C (for air or dry SO2 gas)
- Outlet Temperature: ≤550 °C
- Temperature Control: Adjustable by changing the number of energized heating groups
- Compatible Gases: Air, dry SO2 gas, flue gas
| Model | Power (kW) | Door Quantity | Connecting Pipe φ mm | Outline Dim. mm | Installation Dim. mm | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| L | h | l | j | e | g | f | ||||
| EH961-1 | 100~200 | 2 | 325~630 | 2420 | 750 | 640 | 350 | 480 | 495 | 200 |
| EH961-2 | 300~600 | 3 | 426~820 | 2500 | 988 | 760 | 350 | 540 | 694 | 250 |
| EH961-3 | 450~800 | 4 | 820~1120 | 3120 | 1298 | 915 | 350 | 750 | 849 | 350 |
| EH961-4 | 500~1000 | 5 | 1120~1320 | 3740 | 1498 | 1014 | 350 | 970 | 949 | 380 |
| EH961-5 | 600~1200 | 6 | 1320~1520 | 4360 | 1698 | 1114 | 350 | 1140 | 1049 | 440 |
