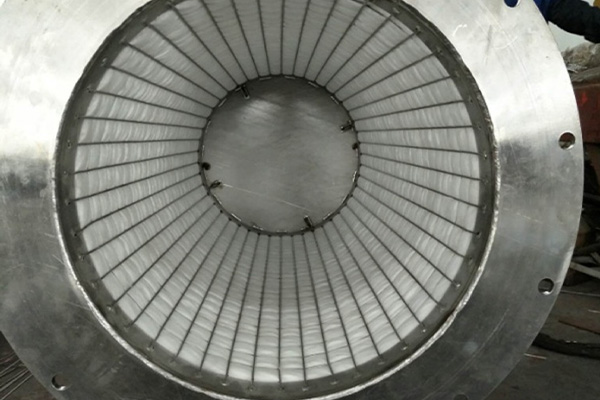

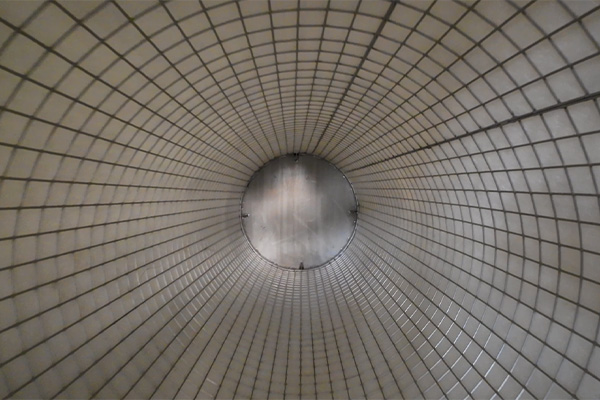

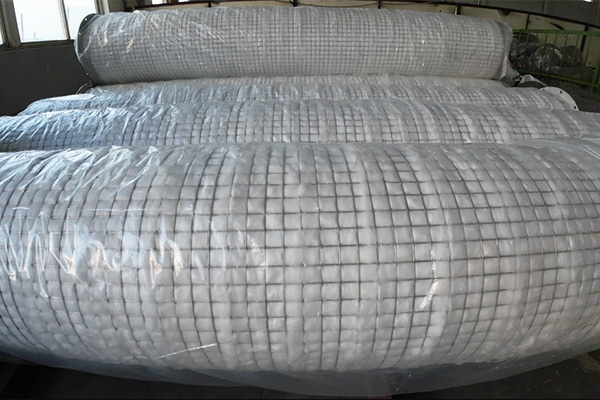

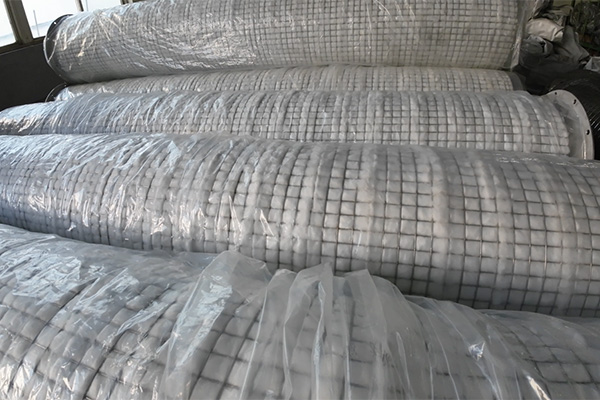

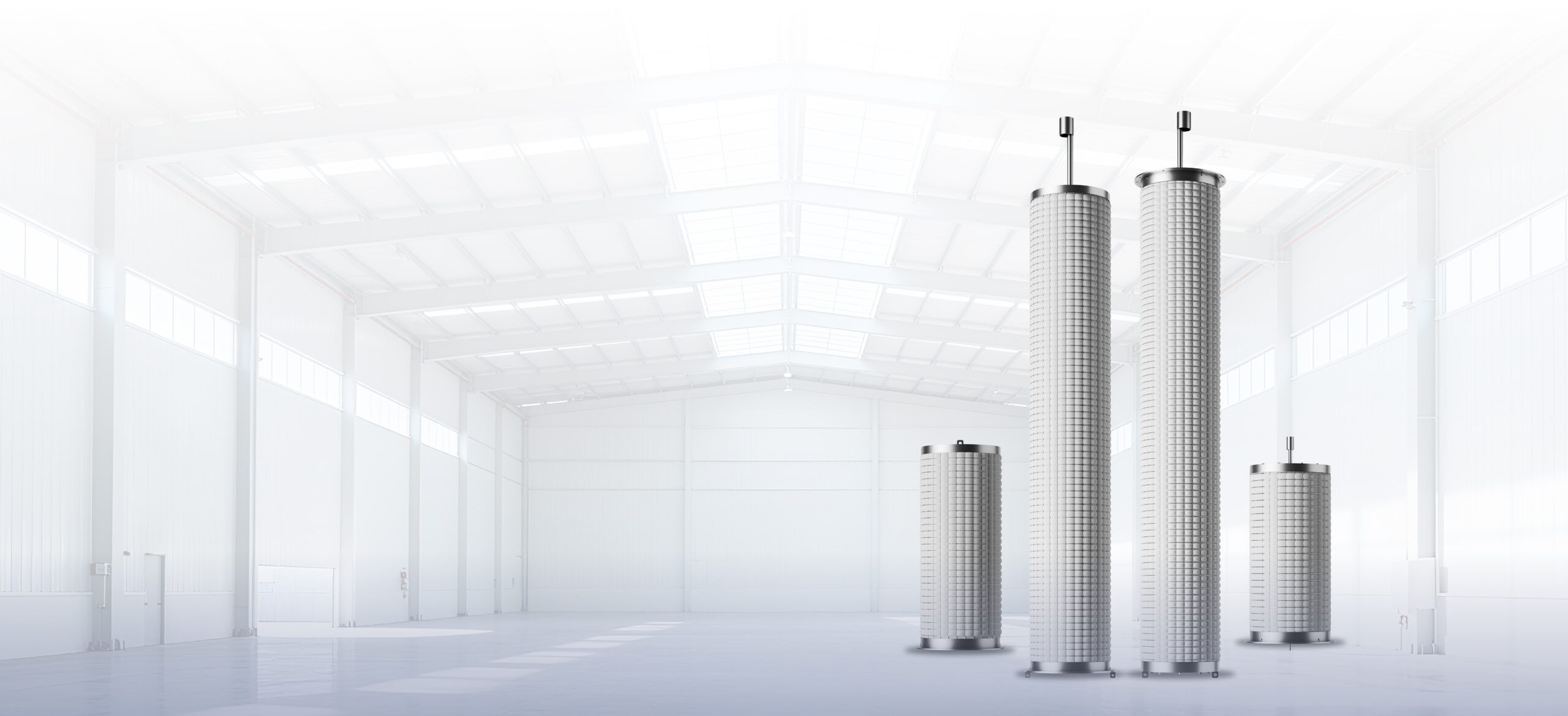

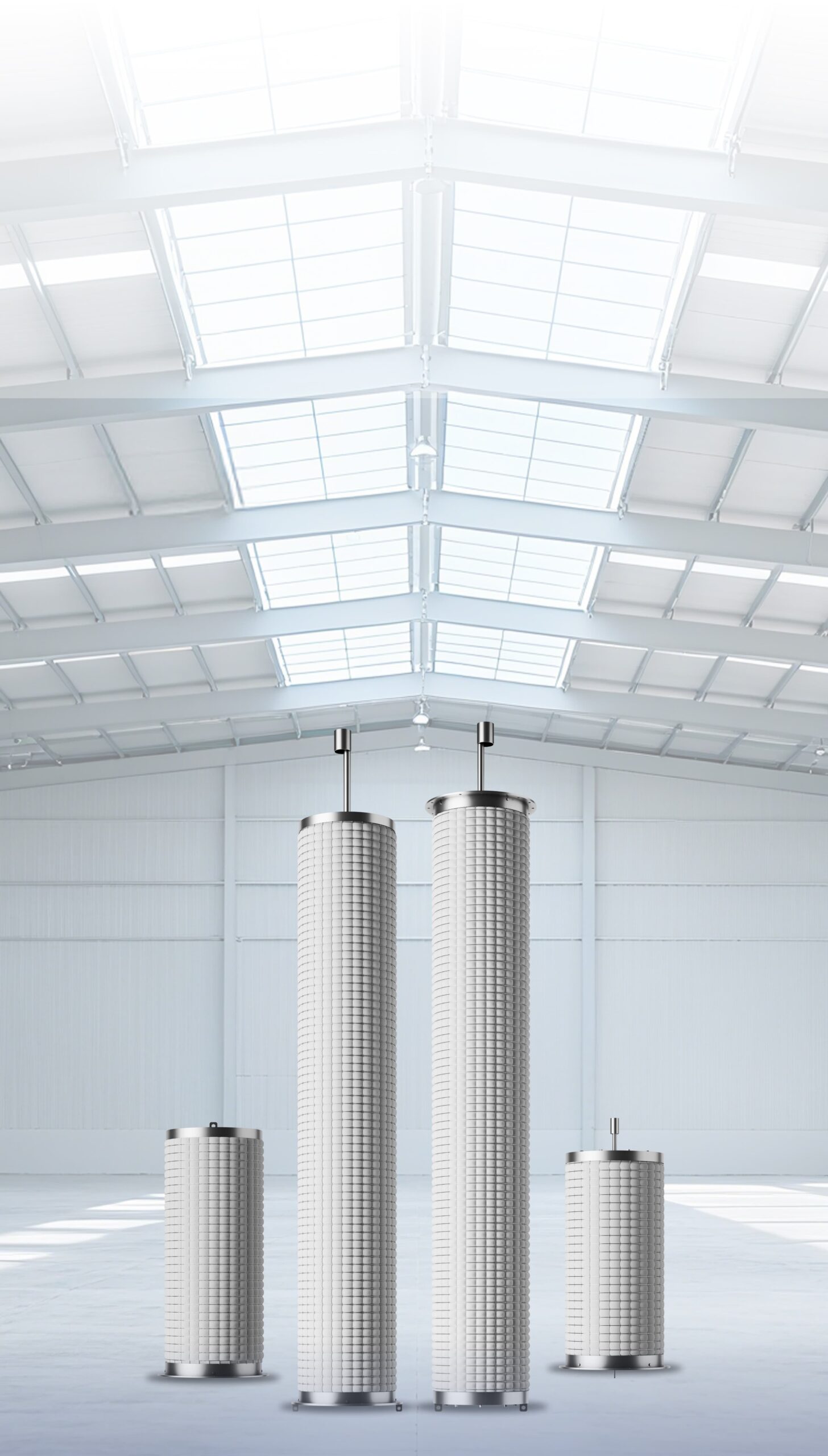

The TGW15, B14(W), and G25 candle filter series combine advanced filtration technologies for efficient solid-gas separation. They are widely used in steam drums, seawater evaporators, compressed air and compressed gas systems, humidifiers, processing plant emission systems, and intake foam capture for gas turbine technology; as well as in chemical applications including vacuum distillation columns, evaporators, separation drums, scrubbers, and packed towers, sulfuric acid drying and absorption sections, and low-temperature waste heat recovery sections.
Featuring low pressure loss, stable operation, and high filtration efficiency, the fiber diameter can reach 7 microns, and the fiber orientation can be aligned through a special process to meet the diverse demands of high-efficiency and high-capacity applications.
Model and Specification of BECOFIL Candle Filter
| Model | Efficiency | Process Parameters | Remark | |
|---|---|---|---|---|
| Pressure Loss (mmH₂O) | Bed Velocity (m/s) | |||
| TGW15 | 100% > 1 µm | 37~225 (Dry) 75~450 (Wet) | 0.05~0.25 | Highest Efficiency |
| 98% > 0.5–1 µm | ||||
| B14(W) | 100% > 3 µm | 78~335 | 0.1~0.35 | Highest Efficiency |
| 98-99% < 3 µm | ||||
| G25 | 100% > 3 µm | 12~400 | 0.8~2.5 | High Capacity |
Note: Besides the above common glass fibers, there are Polypropylene fiber PP13.5, Polyester fiber Pt12, Teflon fiber T80.35, Carbon Fiber C7、C7K for mist or particles removal in special processes.
