Product category: Desulfurization equipment series

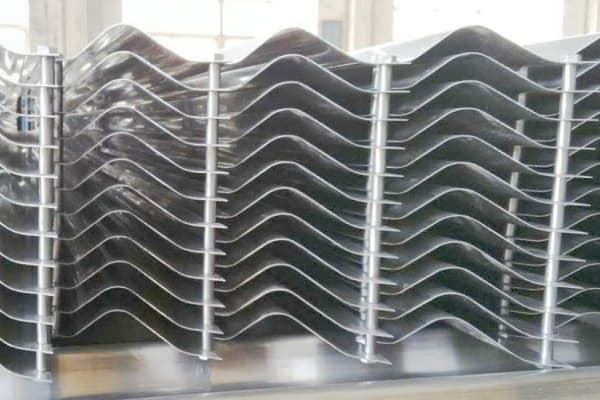

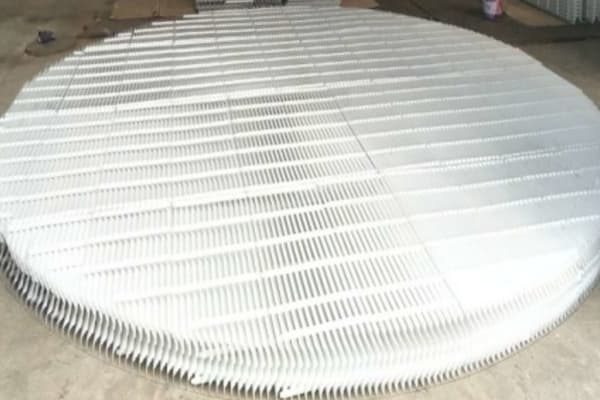

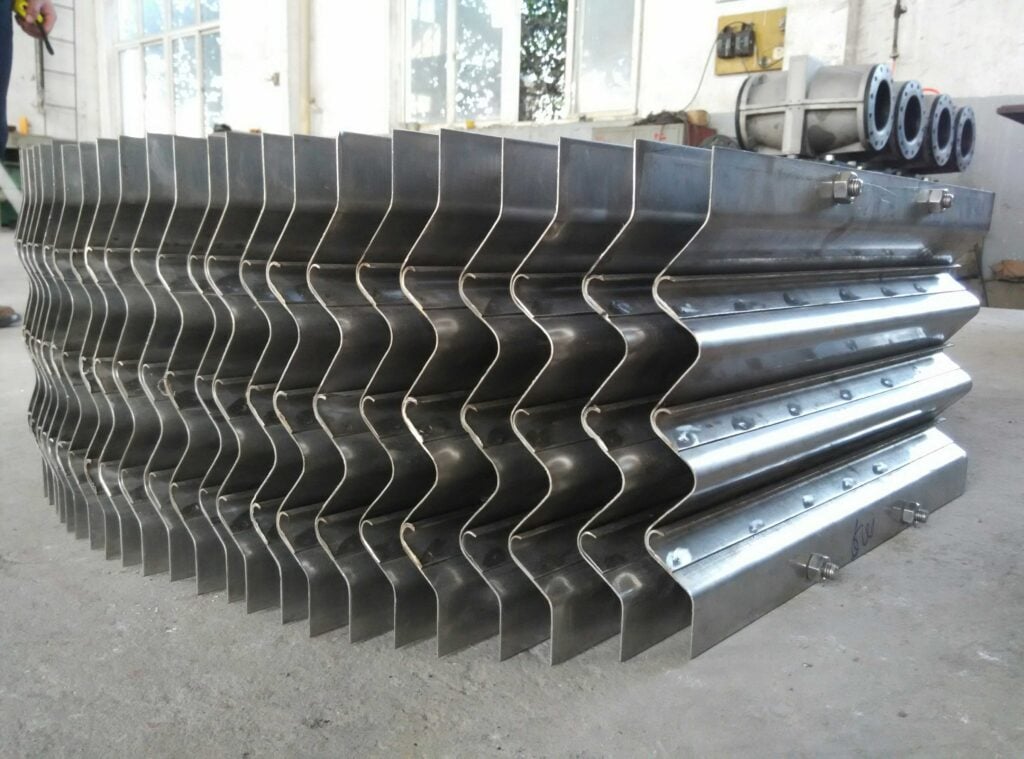

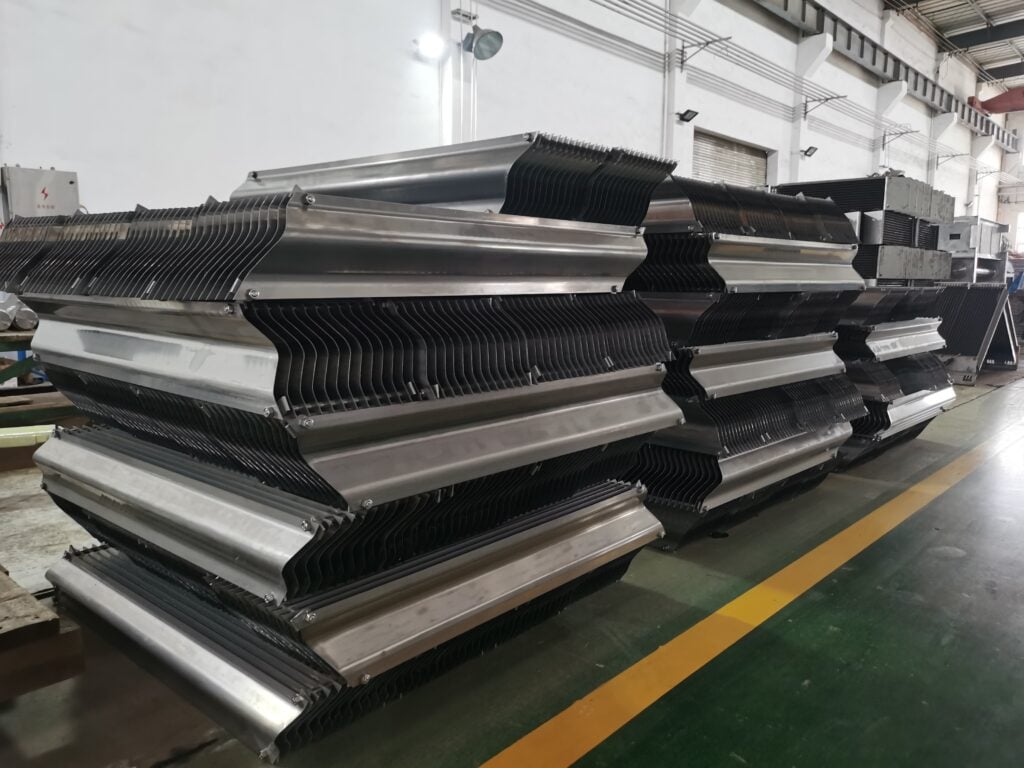

Chevron Vane Demister (1-Level Tubular & 2-Level Waves)
Request a quoteSeparate by Inertia.
Drain by Gravity.
Chevron Vane Demister depends on inertia and gravity effect of liquid drop in flue gas. When flue gas with liquid drop goes through wave channel, the flow will be changed directions continuously. Under the inertia and gravity, gas and liquid will be separated. Then liquid drops will be collected on the vanes and drain into washing tank under gravity effect after accumulating, also solid on the vanes will be washed into washing tank.
Key Features
Low Pressure Loss & Self-Cleaning

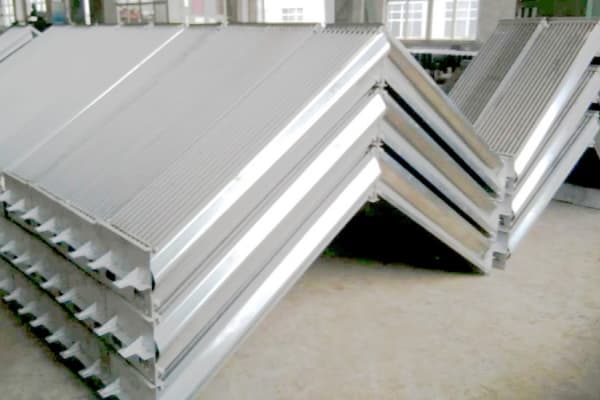

NHD’s Chevron Vane Demister is featured with 1 level tubular and 2 levels waves. Design of fair shaped vane can reduce the pressure loss, without dead area for washing. And this demister won’t block due to self-cleaning of tubular demister and wave demisters with good washing system. Non-standard design can reduce blind area and improve active area.
Wide Applications
NHD Chevron Vane Demisters are widely used in chemical industries such as wet flue gas desulfurization, petroleum distillation towers, pharmaceutical evaporation systems, acid mist treatment etc.
Properties Preserved

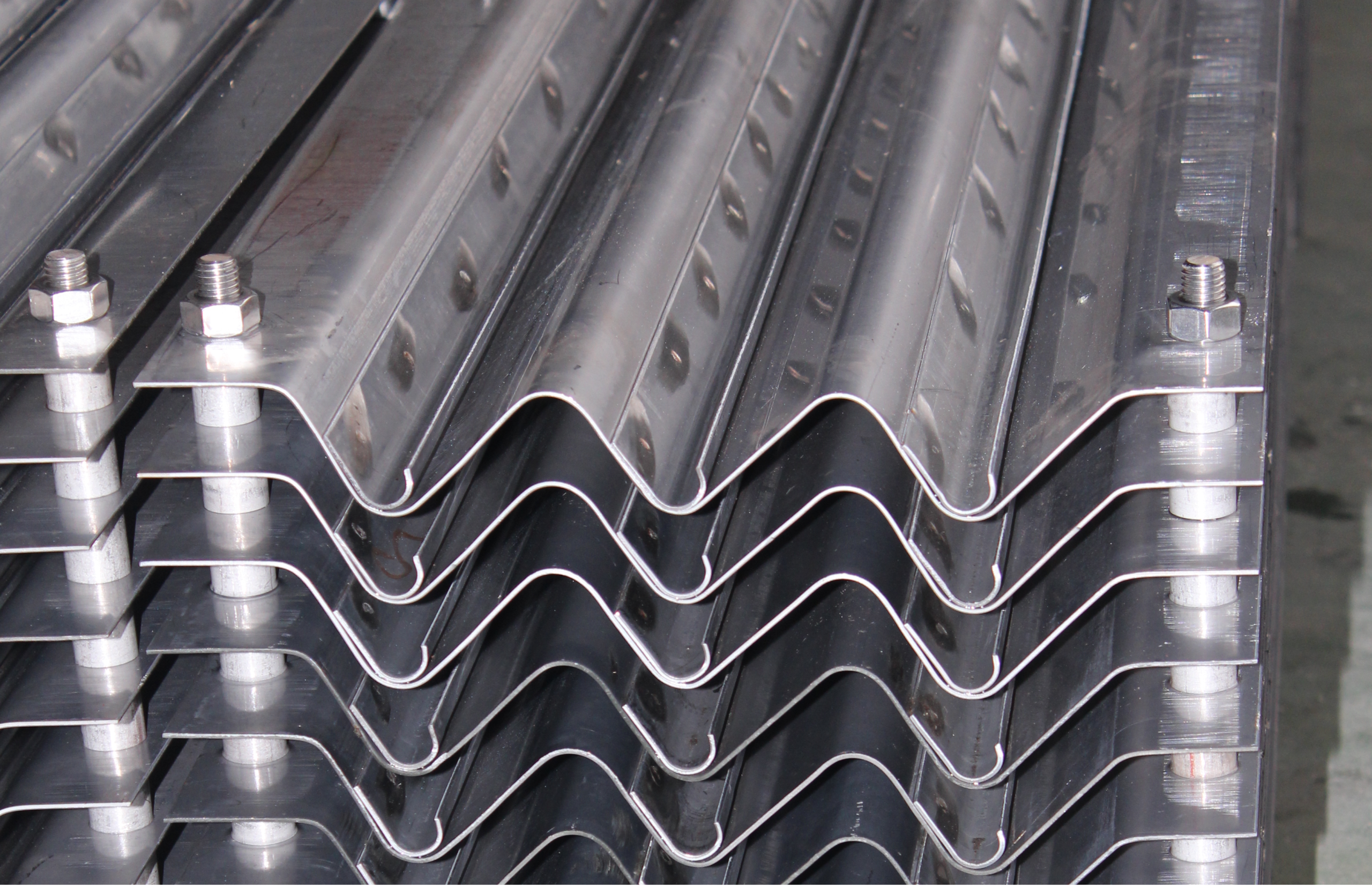

All parts of wave Chevron Vane Demister are cold formed by once pressing. There is no heat treatment or process in fabrication, so the material keeps its original chemical and physical properties without change of metallographic structure, to extend service life.
Related products
Desulfurization equipment series
Desulfurization Regeneration Tower Sprayer (Steel Plant)
For power plant desulfurization absorber towers, NHD offers specialized solutions for static duct and chimney lining, including titanium lining and titanium composite lining.
Equipment for sulfuric acid industry
Wire Mesh Demister
NHD pioneered the development of three generations of wire mesh demisters as a designated supplier for the Ministry of Chemical Industry, China National Nonferrous Metals Corporation, and the petrochemical sector.
Equipment for sulfuric acid industry
BECOFIL Candle Filter
Removing 100% of droplets >1 um for scrubbers, packed towers, evaporators, sulfuric acid drying andabsorption sections, and low-temperature waste heat recoverysections
Equipment for sulfuric acid industry
Carbon Fibre Candle Filter
Longer life and high efficiency for gas emission control for off-gas acid plant with HF present.
Leave us a message for more information
"*" indicates required fields
Give us a call
Mon – Fri 9:00AM – 6:00PM (UTC+8)
Send us an email
Min order
1 UNIT / SET / PIECE
Warranty
18 months post-delivery or 12 months post-operation
